НовостиКомплит байки Mankind 2021

20.11.2020

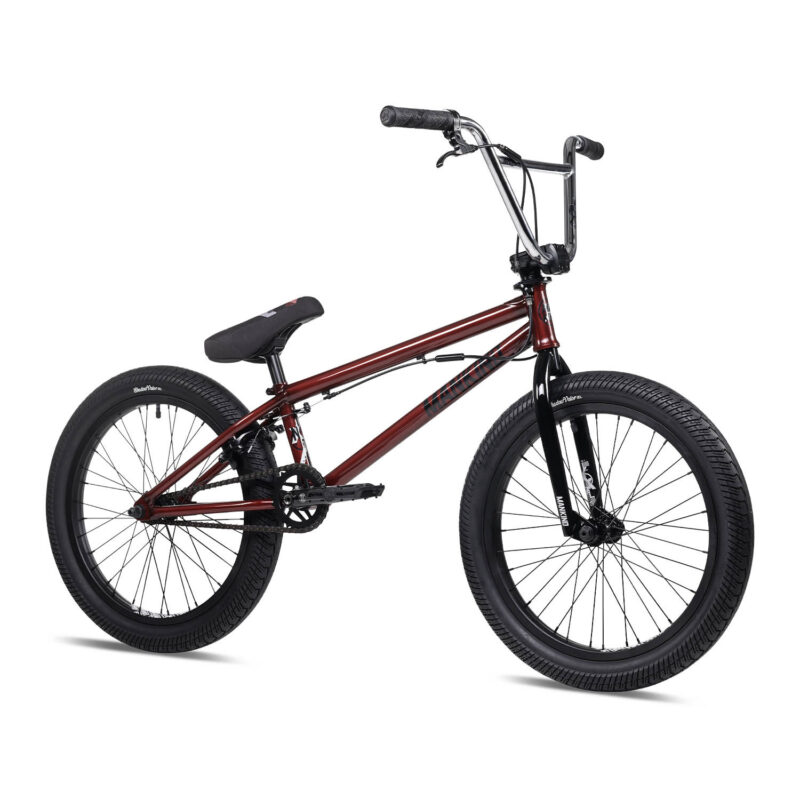

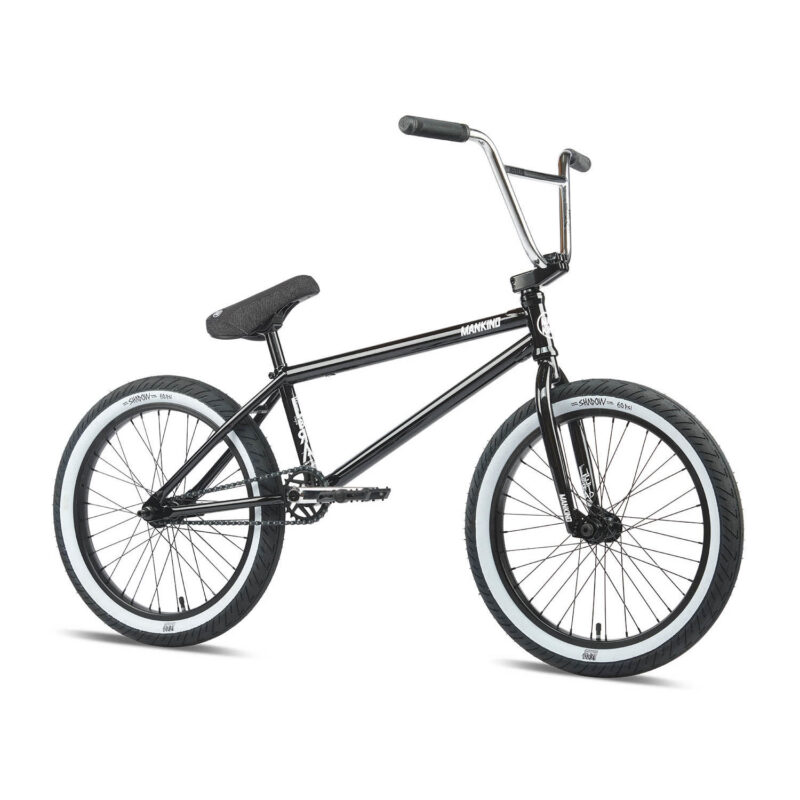

International

FRAME:100% Chromoly Frame-MK SS Bridge–TT & DT Gusset

TOP TUBE: 20.75”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.5”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly-1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly - 8.9” Rise, Back: 12°/Up: 2°,Width: 29.0”

GRIPS: Mankind Control Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Epoch Front Load Stem-48mm reach

HEADSET: Mankind Epoch Sealed Integrated

BRAKE: Alloy U-brake/ Shadow Sano Detangler

BRAKE LEVER: Alloy Lever-2-Finger Design-Hinged

REAR HUB: Mankind Vision Cassette Hub RHD–Sealed-14mm axle-9t

FRONT HUB: Mankind Vision Front Hub-Sealed-Female Axle

SPROCKET: Mankind Control Alloy 28t

WEIGHT: 11.90 kg

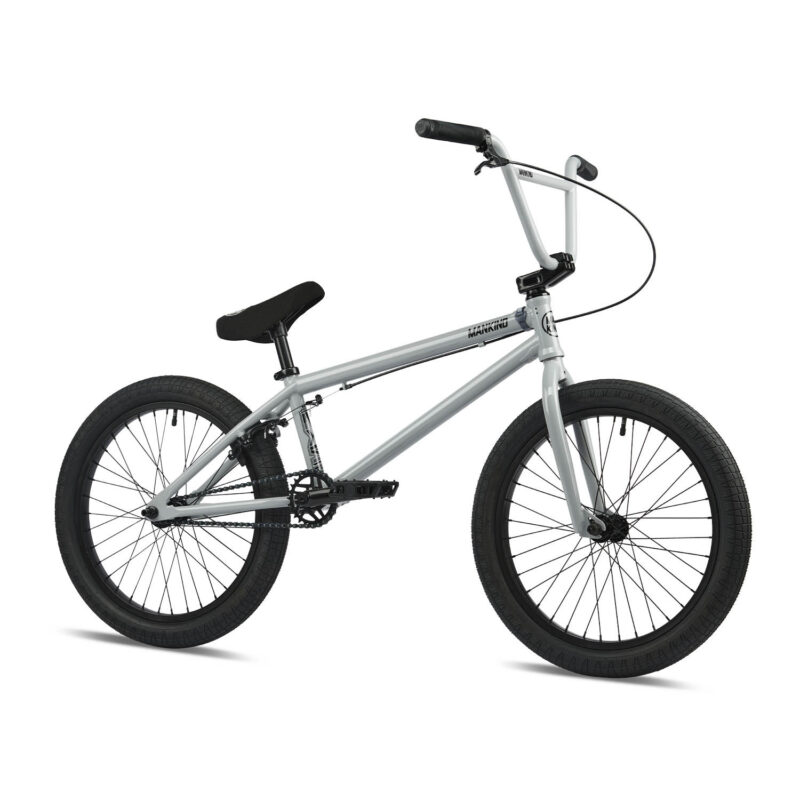

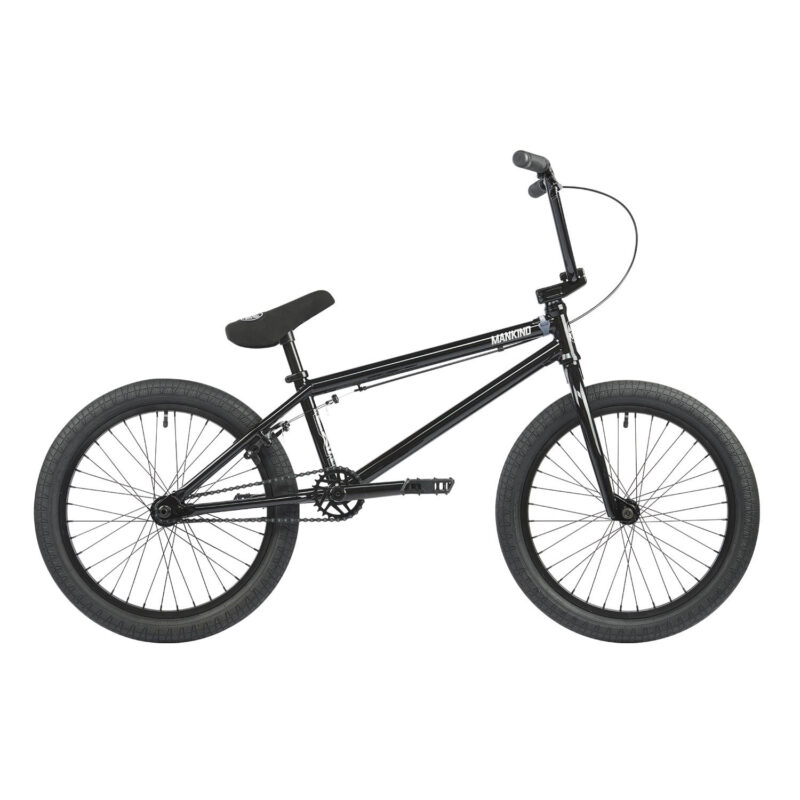

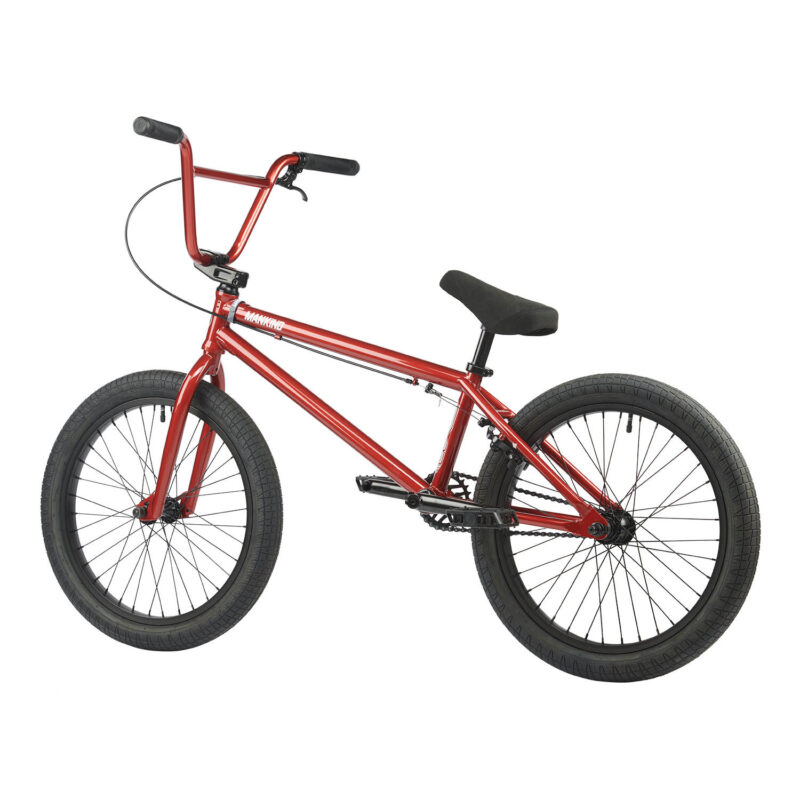

N XS, NXS JR & N XS XL

FRAME: 1020 Hi-Ten Steel Frame-Top & Down Tube Gusset

TOP TUBE: 20.5”–JR: 20.0”–XL:21.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.5”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel-1-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 8.5” Rise, Back: 12°/Up: 2°, Width:28.5”

GRIPS: MankindControlGrips

BAR ENDS: MankindNylon

STEM: MankindControlTop LoadStem-Alloy-50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever-2-Finger Design

REAR HUB: Mankind Control Cassette Hub–Sealed-14mm axle-9t Driver

FRONT HUB: Alloy-Loose Ball-3/8” axle

SPROCKET: MankindControl Steel 25t

CRANKS: Chromoly–8 Spline-3-Piece-170mm-19mm

BOTTOM BRACKET: Mid BB Sealed-19mmCHAINPYC 410-black

PEDALS: Plastic Platform

FRONT RIM: 6061 Alloy-Single Wall36H

REAR RIM: 6061 Alloy-Single Wall36H

SPOKES: Steel Spokes–14mm nipples-black

FRONT TIRE: Park/Street TireLP60 PSI-2.3”

REAR TIRE: Park/Street TireLP60 PSI-2.3”

SEAT: MankindNXSMidSeat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind ControlAlloy-black

COLOURS NXS: Gloss Black, Chrome Red, Gloss Grey

NXSJR: Gloss Black, Chrome Red

NXSXL: Gloss Black, GlossRaw

WEIGHT: 10.70 kg

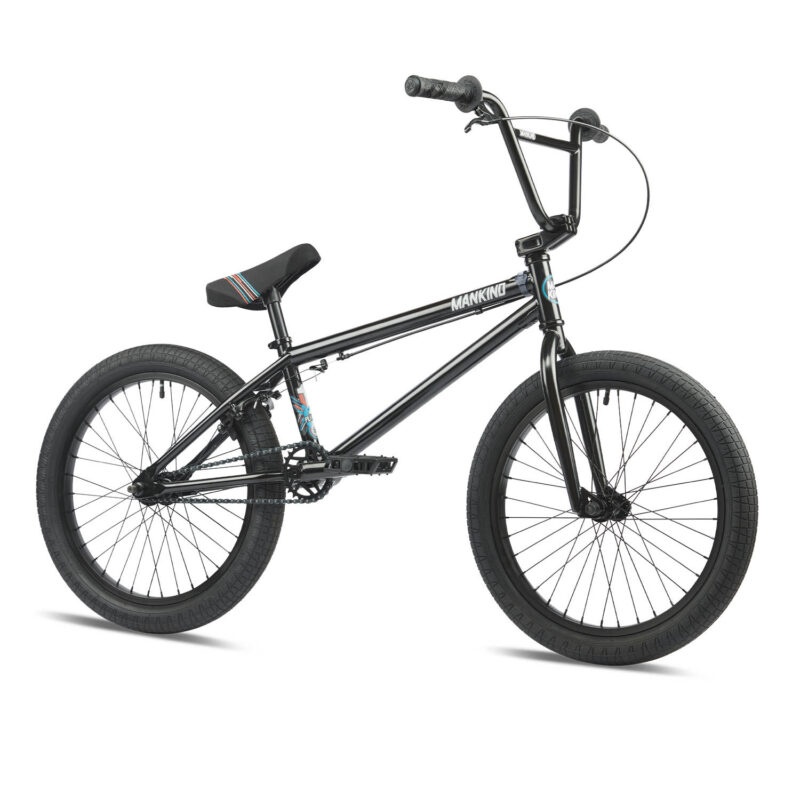

Planet 20”

FRAME: 1020 Hi-Ten Steel Frame-Top & Down Tube Gusset

TOP TUBE: 20.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.5”

STAND OVER: 8.3”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel-2-PC Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel, 8.25” Rise, Back: 12°/ Up: 2°, Width: 28.3”

GRIPS: Mankind Asadi Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem-Alloy-50mm reach

HEADSET: Standard 1-1/8” Threadless

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever-2-Finger Design

REAR HUB: Mankind Control Cassette Hub–Semi Sealed-14mm axle-9t

FRONT HUB: Steel-Loose Ball-3/8” axle

SPROCKET: Mankind Control Steel 25t

CRANKS: Chromoly–8 Spline-3-Piece-170mm-19mm

BOTTOM BRACKET: American Loose Ball-19mm

CHAIN: PYC 410-black

PEDALS: Plastic Platform

FRONT RIM: 6061 Alloy-Single Wall 36H

REAR RIM: 6061 Alloy-Single Wall 36H

SPOKES: Steel Spokes–14mm nipples-black

FRONT TIRE: Park/Street Tire LP60 PSI-2.3”

REAR TIRE: Park/Street Tire LP60 PSI-2.3”

SEAT: MankindPlanetMidSeat/Post Combo

SEAT POST: Seat/Post Combo

SEAT POST CLAMP: Mankind Alloy-black

COLOURS: Ed Black, Semi Matte Blue

WEIGHT: 10.60 kg

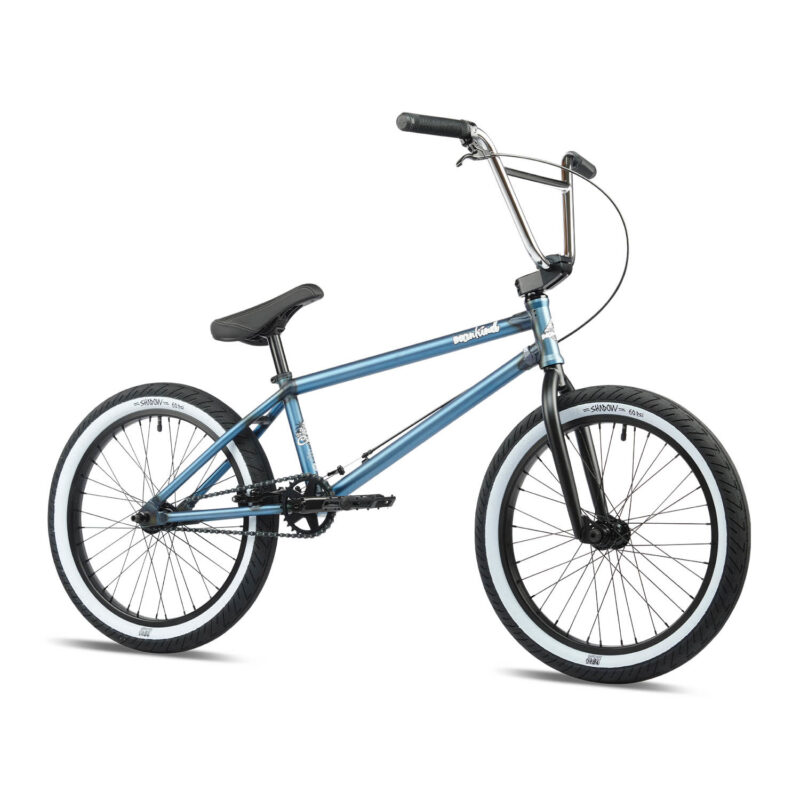

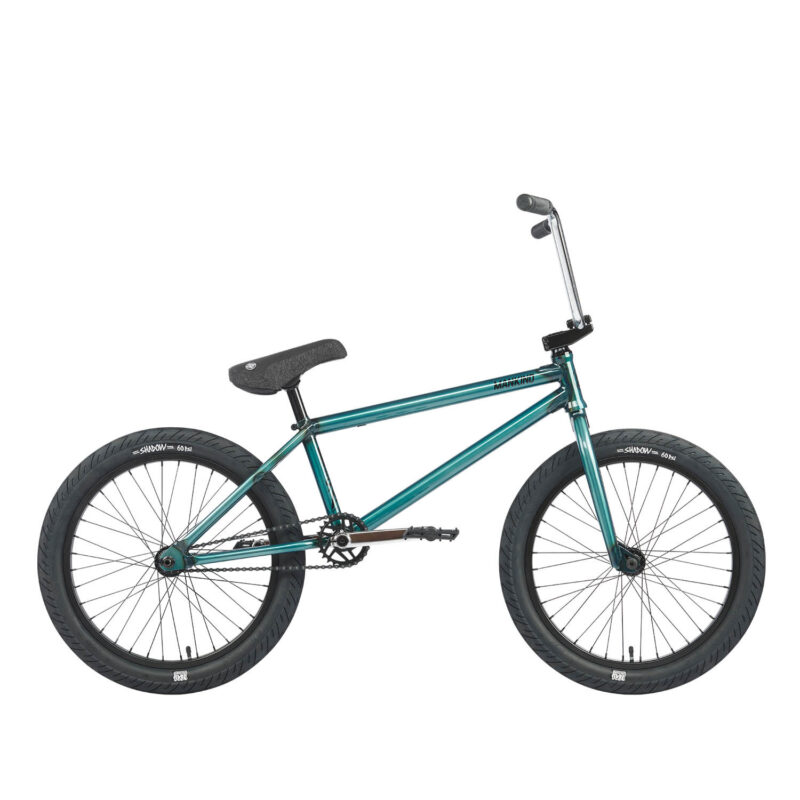

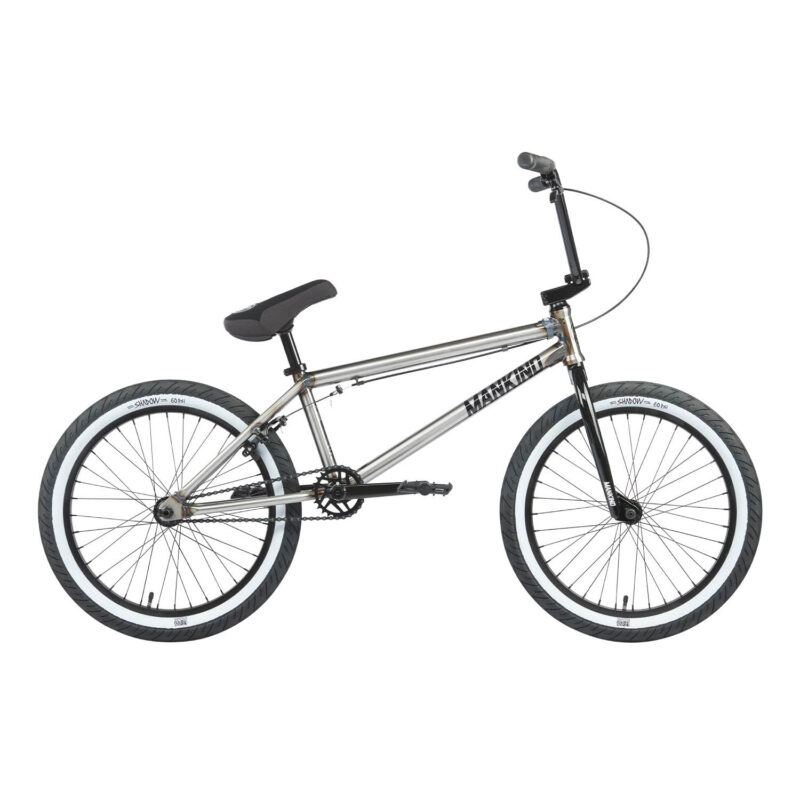

Libertad & Libertad XL

FRAME: 100% Chromoly Frame-MK SS Bridge–TT & DT Gusset

TOP TUBE: 20.5”–XL: 21.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.75”

STAND OVER: 9.0”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly-1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly-8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Control Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem-Alloy-50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever-2-Finger Design-Hinged

REAR HUB: Mankind Control Cassette Hub–Sealed-14mm axle-9t Driver

FRONT HUB: Mankind Control Sealed-Female Axle

SPROCKET: Mankind Control Alloy 25t

CRANKS: Chromoly–8 Spline-3-Piece-170mm-19mm

BOTTOM BRACKET: Mid BB Sealed-19mm

CHAIN: PYC 410-black

PEDALS: Mankind Control Plastic

FRONT RIM: Alloy-Double Wall 36H

REAR RIM: Alloy-Double Wall 36H

SPOKES: Steel Spokes–14mm nipples-black

FRONT TIRE: Shadow Strada Nuova LP 2.30”

REAR TIRE: Shadow Strada Nuova LP2.30”

SEAT: Mankind Libertad Mid-Pivotal Seat

SEAT POST: Pivotal Seat post Alloy

SEAT POST CLAMP: Integrated COLORS Gloss Trans Teal, Gloss Raw, XL: Gloss Black

WEIGHT: 11.70 kg

COLOURS: Gloss Black (XL), Gloss raw, Gloss Trans teal

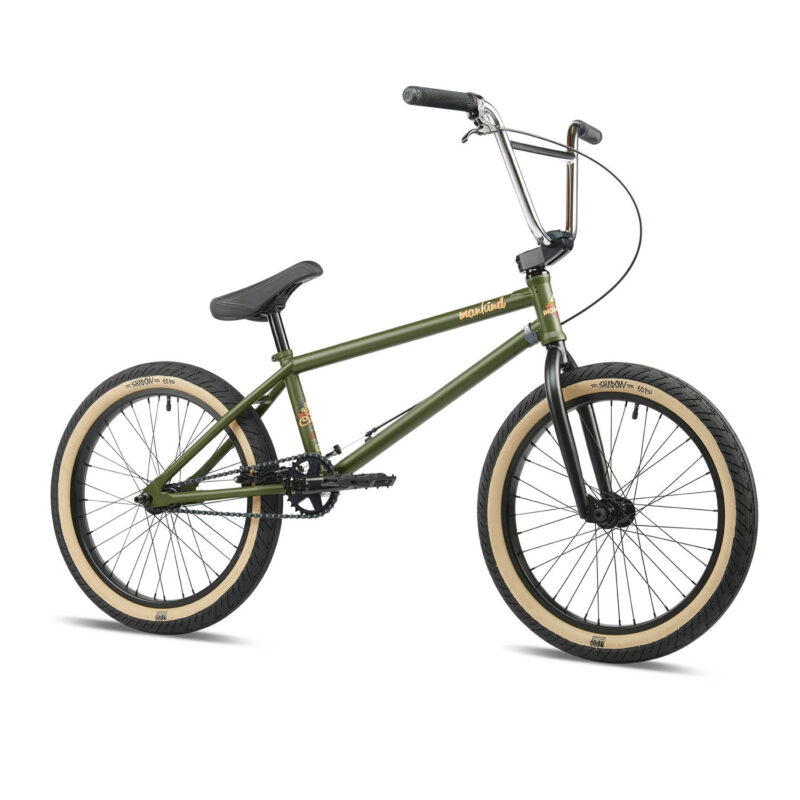

Sunchaser

FRAME: 100% Chromoly Frame-MK SS Bridge–TT & DT Gusset

TOP TUBE: 21.0”CHAIN STAY 13.75”

HEAD TUBE: 74.5°

SEAT TUBE: 71°

BB HEIGHT: 11. 5”

STAND OVER: 9.0”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly-1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly-9.2” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Control Grips

BAR ENDS: Mankind Nylon STEM Mankind Sunchaser Stem-Alloy-50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever-2-Finger Design-Hinged

REAR HUB: Mankind Control Cassette Hub–Sealed-14mm axle-9t Driver

FRONT HUB: Mankind Control Sealed-Female Axle

SPROCKET: Mankind Sunchaser Sprocket Alloy 28t

CRANKS: Chromoly–8 Spline-3-Piece-170mm-19mm

BOTTOM BRACKET: Mid BB Sealed-19mm

CHAIN: P121 Halflink

PEDALS: Mankind Control Plastic

FRONT RIM: Alloy-Double Wall 36H

REAR RIM: Alloy-Double Wall 36H

SPOKES: Steel Spokes–14mm nipples-black

FRONT TIRE: Shadow Strada Nuova LP2.30”

REAR TIRE: Shadow Strada Nuova LP2.30”

SEAT: Mankind Sunchaser Pivotal Seat

SEAT POST: Pivotal Seat post Alloy

SEAT POST CLAMP: Integrated

COLOURS: Semi Matte Army Green, Semi Matte Trans Blue

WEIGHT: 11.9kg

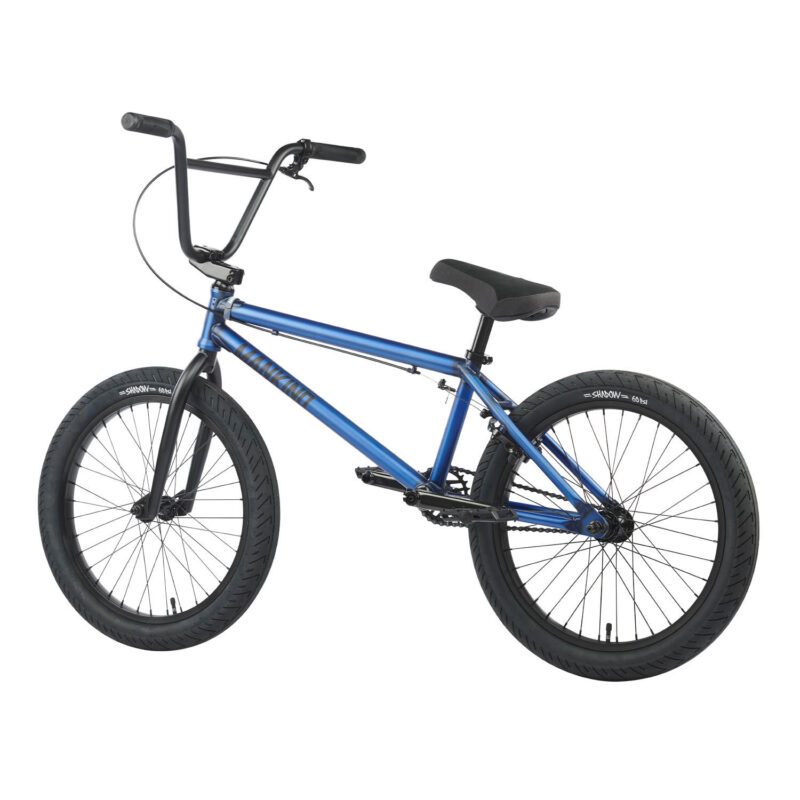

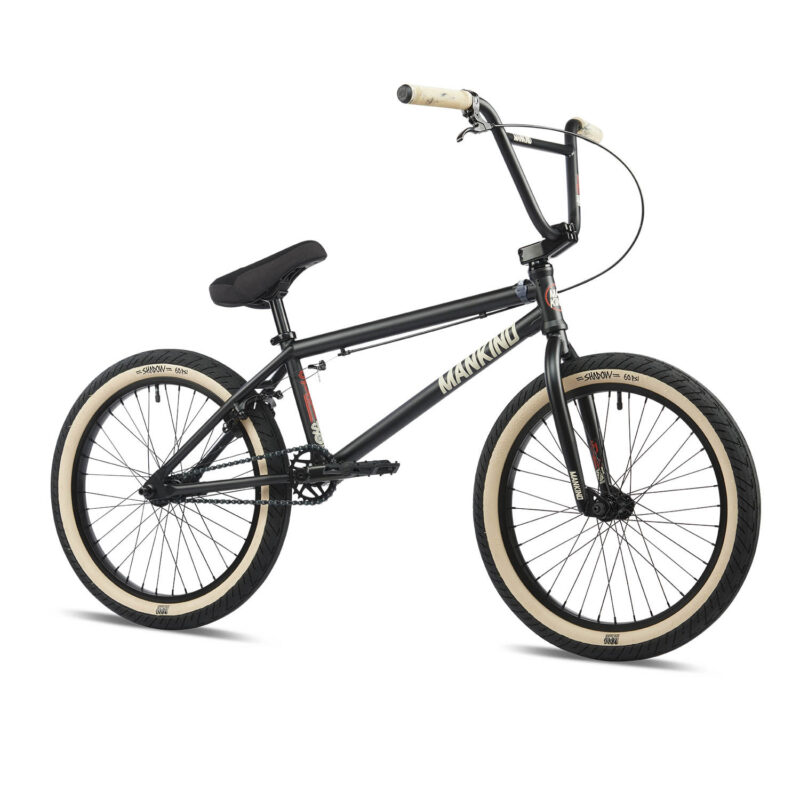

Sureshot 20 & XL 20

FRAME: 1020 Hi-Ten Steel Frame – TT & DT 100% Chromoly - MK TT & DT Gusset

TOP TUBE: 20.5” – XL: 21.0”

CHAIN STAY: 13.25”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.75”

STAND OVER: 9.0”

BRAKE MOUNTS: Welded

FORK: 1020 Hi-Ten Steel - 2-PC Chromoly Steerer, Tapered Legs, 28mm offset

BARS: 1020 Hi-Ten Steel - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

GRIPS: Mankind Control Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Control Top Load Stem - Alloy - 50mm reach

HEADSET: Mankind Control Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever - 2-Finger Design - Hinged

REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver

FRONT HUB: Mankind Control Sealed – Male 3/8” Axle

SPROCKET: Mankind Control Alloy 25t

CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm

BOTTOM BRACKET: Mid BB Sealed - 19mm

CHAIN: PYC 410 - black

PEDALS: Mankind Control Plastic

FRONT RIM: Alloy - Double Wall 36H

REAR RIM: Alloy - Double Wall 36H

SPOKES: Steel Spokes – 14mm nipples - black

FRONT TIRE: Shadow Strada Nuova LP 2.30”

REAR TIRE: Shadow Strada Nuova LP 2.30”

PEGS: None

SEAT: Mankind Patch Mid Pivotal Seat

SEAT POST: Pivotal Seatpost Alloy

SEAT POST CLAMP: Mankind Control Alloy - black

COLORS: Semi Matte Black, Semi Matte Trans Blue, XL: Gloss Raw, Semi Matte Trans Green

WEIGHT: 11,30 kg

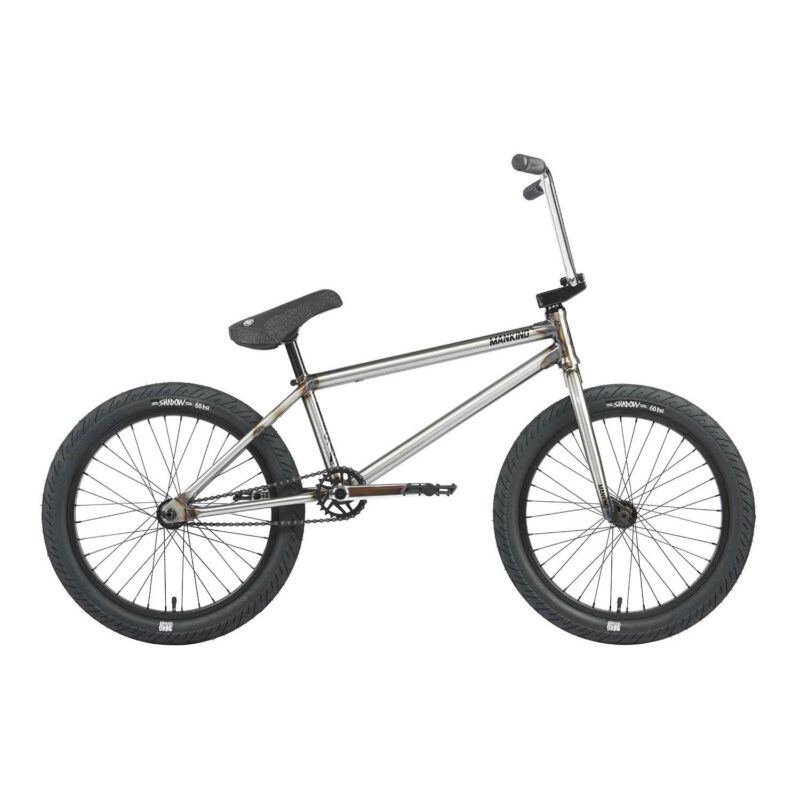

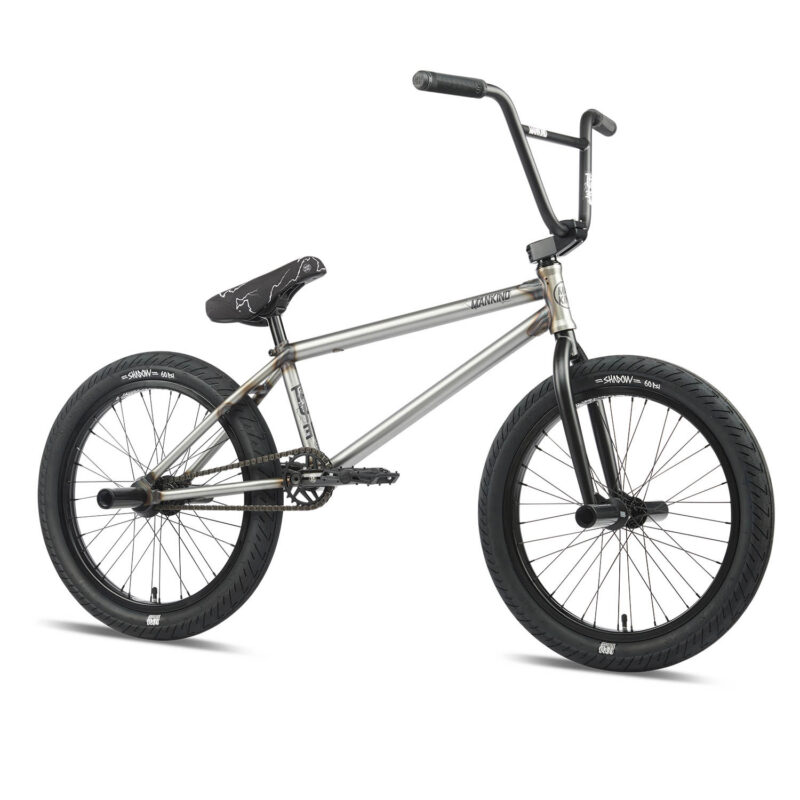

Thunder Complete Bike

FRAME: 100% ChromolyFrame-MK SS Bridge–TT & DT Gusset

TOP TUBE: 21.0”

CHAIN STAY: 13.5”

HEAD TUBE: 75°

SEAT TUBE: 71°

BB HEIGHT: 11.75”

STAND OVER: 9.0”

BRAKE MOUNTS: Removable Brake Mounts & Cable Stopper

FORK: 100% Chromoly-1-PC Steerer, Tapered Legs, 28mm offset

BARS: 100% Chromoly-8.9” Rise,Back:12°/Up: 2°,Width: 29.0”

GRIPS: Mankind Control Grips

BAR ENDS: Mankind Nylon

STEM: Mankind Sunchaser Stem-Alloy-50mm reach

HEADSET: Mankind Epoch Sealed Integrated

BRAKE: Alloy U-brake

BRAKE LEVER: Alloy Lever-2-Finger Design-Hinged

REAR HUB: Mankind Vision Freecoaster Hub–Sealed-14mm axle-9t-2 x HG

FRONT HUB: Mankind Vision Front Hub-Sealed-Female Axle-2 x Hub Guards

SPROCKET: Mankind Control Alloy 25t

CRANKS: Mankind INTL Chromoly–48 Spline-3-Piece-170mm–19mm

BOTTOM BRACKET: Mankind Epoch Mid BB Sealed-19mm

CHAIN: Shadow Interlock V2-black

PEDALS: Mankind Control Plastic

FRONT RIM: Mankind Vision Rim-Alloy-Double Wall 36H

REAR RIM: Mankind Vision Rim-Alloy-Double Wall 36H

SPOKES: Steel Spokes–16mm nipples-black

FRONT TIRE: Shadow Strada Nuova LP2.30”

REAR TIRE: Shadow Strada Nuova LP2.30”

PEGS: Mankind Respect Plastic Pegs 2xPair

SEAT: Mankind Thunder V2 Mid-Pivotal Seat

SEAT POST: Pivotal Seat post Alloy

SEAT POST CLAMP: Integrated

COLOURS: Semi Matte Raw

WEIGHT: 11.30 kg
